Ultrasonic Welding Horn Selection Guide: 4 Key Factors for Optimal Performance
Thinking from the customer’s perspective, revealing what the industry considers when selecting ultrasonic welding horns (sonotrodes).
Whether online or offline, we have always emphasized that “you get what you pay for,” but customers still have doubts. Today, I will explain from the perspective of raw materials and ultrasonic tooling design what to pay attention to when purchasing and using ultrasonic wire harness welding equipment.
Unquestionably, the welding horn is the most core part of the entire welding system, and general customer complaints usually focus on this part. As a manufacturer, when configuring a high-performance ultrasonic welding horn for customers, we usually consider the following four points:
1. Select according to welding materials
- Material type: Different metal materials have different physical properties, such as hardness, melting point, and electrical conductivity. This requires the horn material (such as titanium alloy, aluminum alloy, or hardened steel) to match them. For example, when welding aluminum wire harnesses, aluminum wires are relatively soft, and adhesion is likely to occur after welding. An aluminum alloy welding horn or a specially coated horn is a more suitable choice, as it can better adapt to the characteristics of aluminum and reduce damage to the aluminum material.
- Material thickness: The thickness of the wire harness also affects the selection of the welding horn. Thinner wire harnesses require more precise horns to avoid over-welding or damaging the harness. Generally, for wire harnesses with a thickness of less than 0.5mm (common in electronic wire splicing), a welding horn with a sharper tip and smaller size can be selected to precisely apply ultrasonic energy. For thicker wire harnesses, such as those exceeding 5mm in thickness or battery tab welding, a larger-sized welding horn capable of providing greater energy output is required to ensure a solid weld.
2. Select according to welding shape and size
- Welding shape: If the shape of the wire harness to be welded is relatively complex, such as requiring circular, square, or special-shaped welding, it is necessary to select a custom ultrasonic horn of the corresponding shape. For example, for welding circular wire harnesses, a circular welding horn can better fit the harness, distribute ultrasonic energy evenly, and improve the welding effect. For square wire harnesses, it may be necessary to customize a specially shaped welding horn to meet the welding requirements.
- Welding size: The welding size of the wire harness determines the size of the welding horn. If the length or width of the wire harness to be welded is relatively large, a larger-sized welding horn is needed to cover the entire welding area. Conversely, if the welding size is small, selecting a small-sized welding horn of appropriate dimensions can ensure welding precision while avoiding energy waste.
3. Select according to welding equipment power
Ultrasonic wire harness welding equipment of different powers needs to be matched with welding horns of corresponding power ratings. If the power of the welding horn does not match the equipment power, it will affect the welding quality and the service life of the equipment. Generally speaking, the higher the equipment power (e.g., 2000W, 3000W, or 4000W ultrasonic welders), the more it is necessary to select a heavy-duty welding horn that can withstand greater energy. For example, for a welding equipment with a power of 3000W, a high-strength welding horn capable of adapting to high energy output should be selected to ensure that the horn will not be damaged due to excessive energy during the welding process, and at the same time, it can effectively transmit ultrasonic energy to the wire harness.
Ultrasonic wire harness welding equipment of different powers needs to be matched with welding horns of corresponding power ratings. If the power of the welding horn does not match the equipment power, it will affect the welding quality and the service life of the equipment. Generally speaking, the higher the equipment power (e.g., 2000W, 3000W, or 4000W ultrasonic welders), the more it is necessary to select a heavy-duty welding horn that can withstand greater energy. For example, for a welding equipment with a power of 3000W, a high-strength welding horn capable of adapting to high energy output should be selected to ensure that the horn will not be damaged due to excessive energy during the welding process, and at the same time, it can effectively transmit ultrasonic energy to the wire harness.
4. Select according to production efficiency and cost
- Production efficiency: In mass production, in order to improve production efficiency, welding horns with fast welding capabilities and optimized acoustic energy transfer can be selected. Some advanced welding horn designs can complete the welding process in a short time, reducing the production cycle. For example, using a welding horn with a special vibration mode and structural design can increase the welding speed by more than 30%.
- Cost: Although high-quality welding horns (like titanium alloy horns) are usually more expensive, from a long-term perspective, choosing a cost-effective welding horn can reduce overall production costs. Although some welding horns have a relatively high initial purchase cost, they have a long tooling lifespan and good welding stability, which can reduce the frequency of replacing welding horns and maintenance costs. When selecting a welding horn, you cannot just consider the price from a single angle; you also need to comprehensively consider factors such as its lifespan, performance, and usage effect.

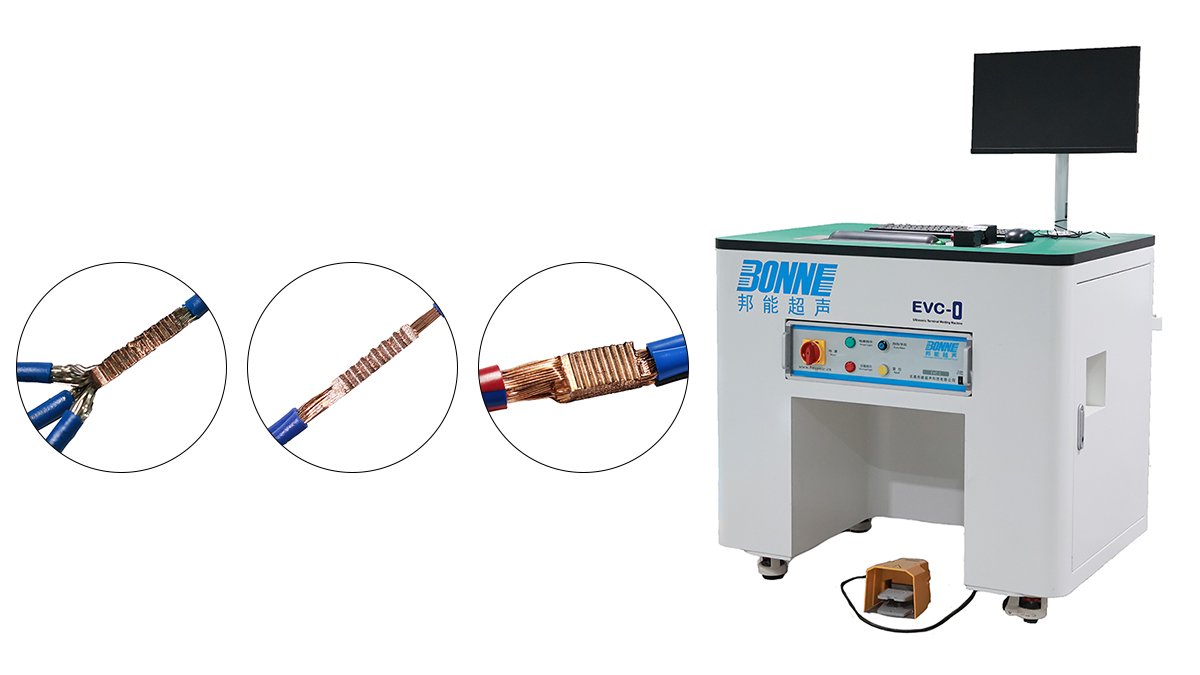

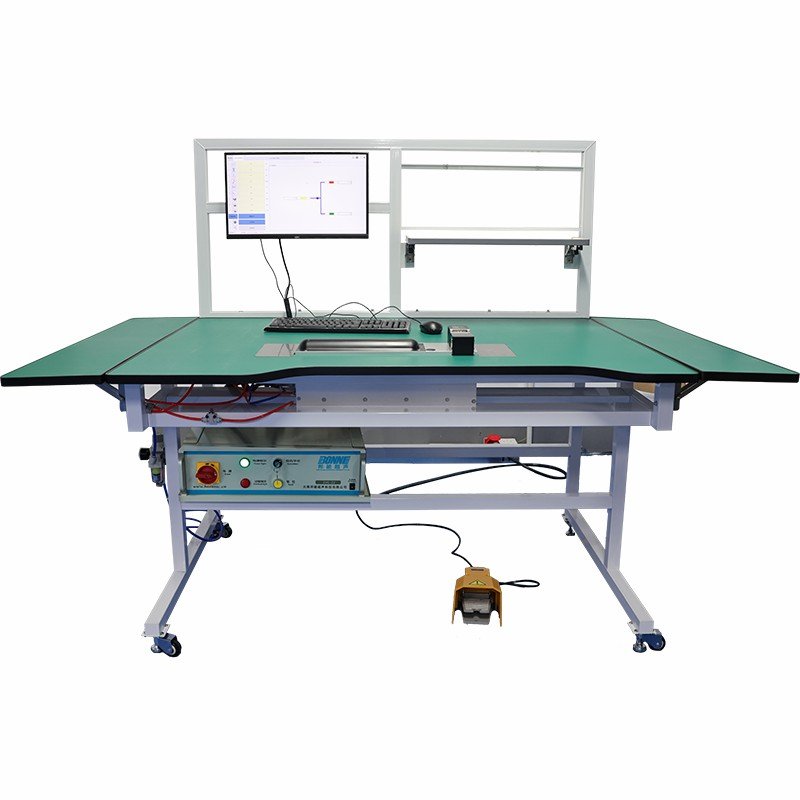

If you have used unsatisfactory ultrasonic wire harness welding equipment or need a durable replacement horn, welcome to give Bonne a try!
