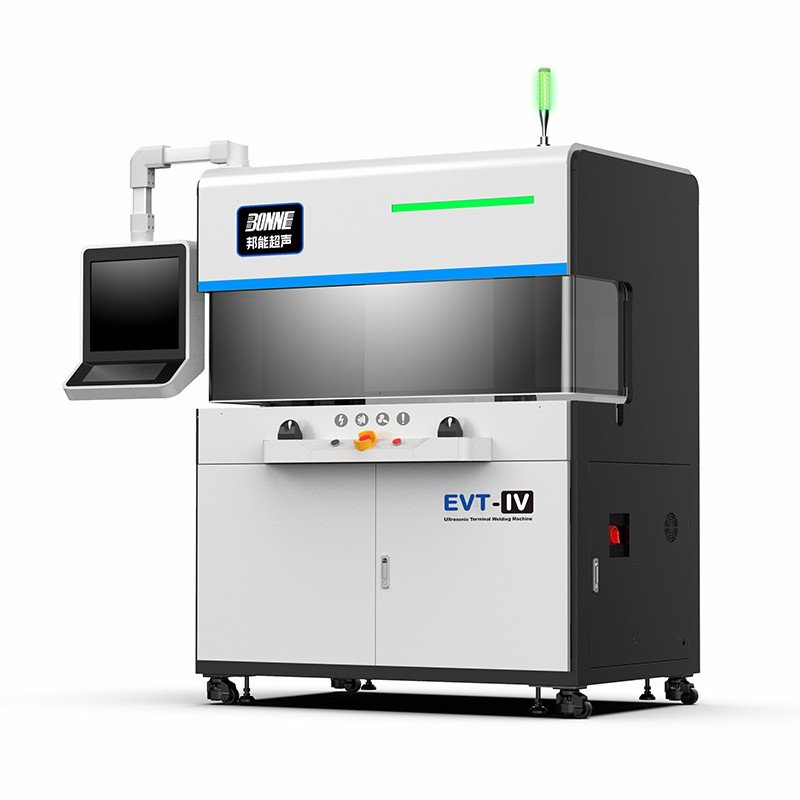

Ultrasonic Terminal Welder EVT-IV
Scope of Application:

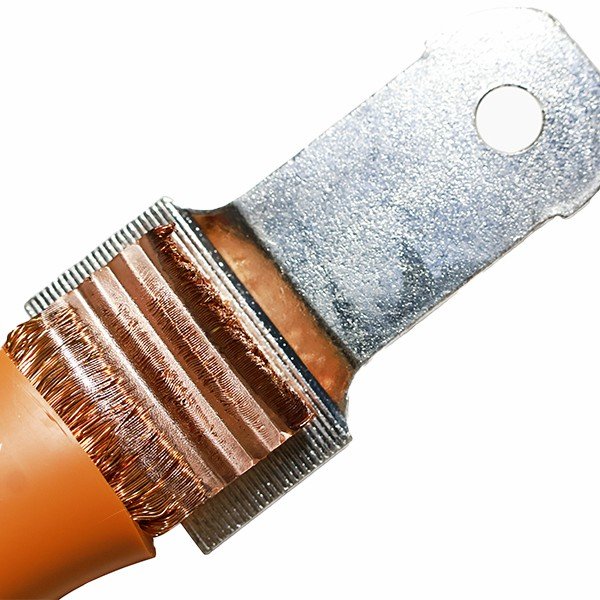

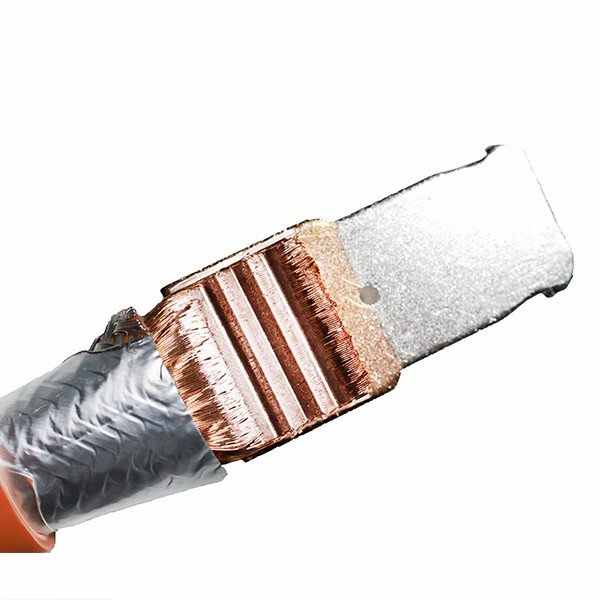

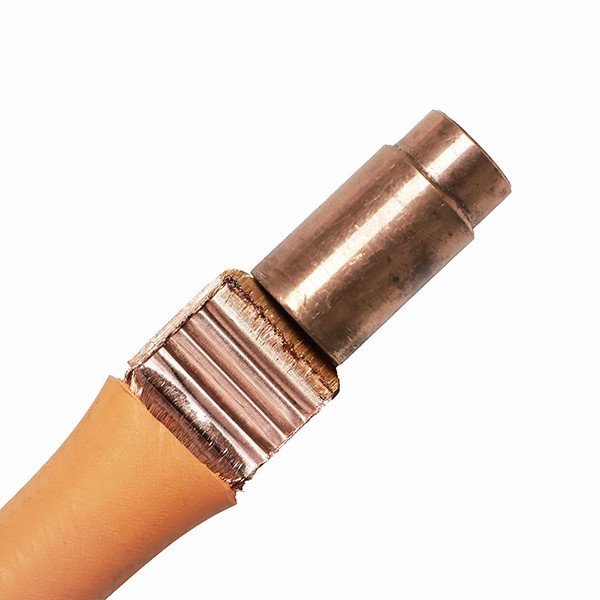

Harnesses to terminals welding
35mm²-180mm²(copper wire,terminal thickness up to 5mm)
50mm²-240mm²(aluminum wire,terminal thickness up to 5mm)
- Dual-transducer high-power welding with flexible amplitude output for diverse wire harness specifications.
- Controlled-vibration welding technology prevents delicate terminal springs from vibration-induced breakage.
- Precision energy management ensures the protection of shaped terminal holes against cracking during the ultrasonic welding process.
- Maintains the original color and conductivity of large-size copper and aluminum wires (no oxidation or blackening).
- Integrated QR code and barcode scanning for seamless product traceability.
- Designed for seamless integration into automatic production lines and MES systems.
- Supports remote control and welding data analysis for smart factory management.
- Real-time monitoring of welding height, pressure, and instant fault alarms to ensure zero-defect production.
Machine model EVC-IV MP Capacity(area) 35-180mm²(copper wire,terminal thickness up to 5mm)
50-240mm²(aluminum wire,terminal thickness up to 5mm)Overall imensions (L*W*H) 1600*1200*1880（mm） Weight 540kg Working voltage 380V AC Working frequency 20KHZ Max.power 20KW Working air pressure 0.2-0.6MPa Air filtration accuracy 5μm Stroke of horn/sonotrode 50mm Working temperature -20℃~40℃
FAQ
Can you provide remote technical support?
Yes, we offer 24/7 remote support.
Can you guarantee consistent welding quality?
This equipment/process can guarantee that the welding quality meets the requirements of Cpk ≥ 1.67 and Cmk ≥ 1.67.
Do you provide on-site installation and training?
Yes. Our service engineer will travel with the equipment to your site and carry out on-site installation and training.
Is your equipment CE certified?
The ultrasonic metal welding equipment comes with CE certification and UL certification.
What is the lead time for the equipment?
For standard equipment, the lead time is between 14 and 45 working days. For non-standard or customized equipment, the lead time will be determined based on mutual agreement between both parties.
What is the warranty period for your ultrasonic metal welding equipment?
Our equipment comes with a standard 1-year warranty.
